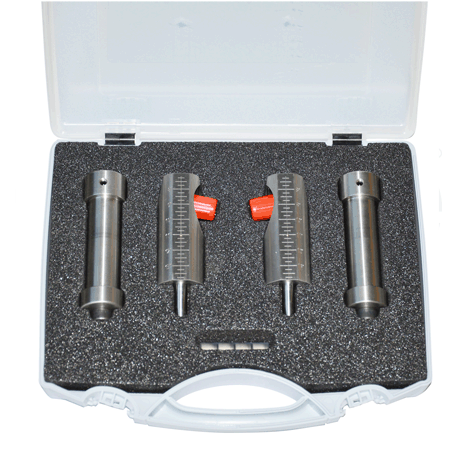

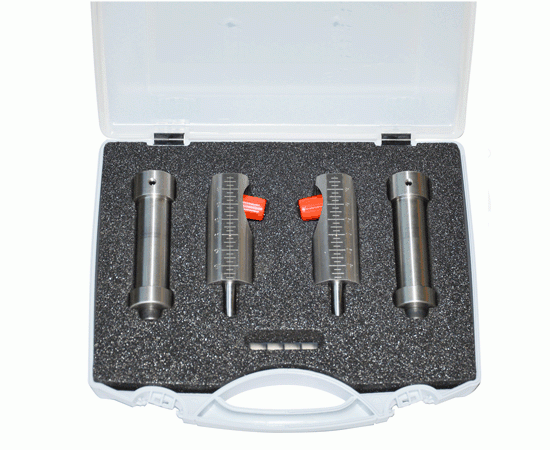

With the Sniper KPI (Kin Pin Inclination) you can measure and control your frame or diagnose damage.
The KPI is used in the frame instead of the spindles. With a 4 laser system (2x front axle to front axle, 2x front axle to rear axle) you can check the frame geometry.
Due to the compact design, the measurement can be carried out quickly and easily.
The following main areas can be measured:
? fall and caster of the "C" on the frame
? The alignment of the geometric travel axis. (How straight is the frame?)
? twisting of the frame
? Parallelism of the frame geometry
The KPI is designed for frames whose "C" has a 22mm hole.
|
