crankshaft press JHC/VAMEC

description

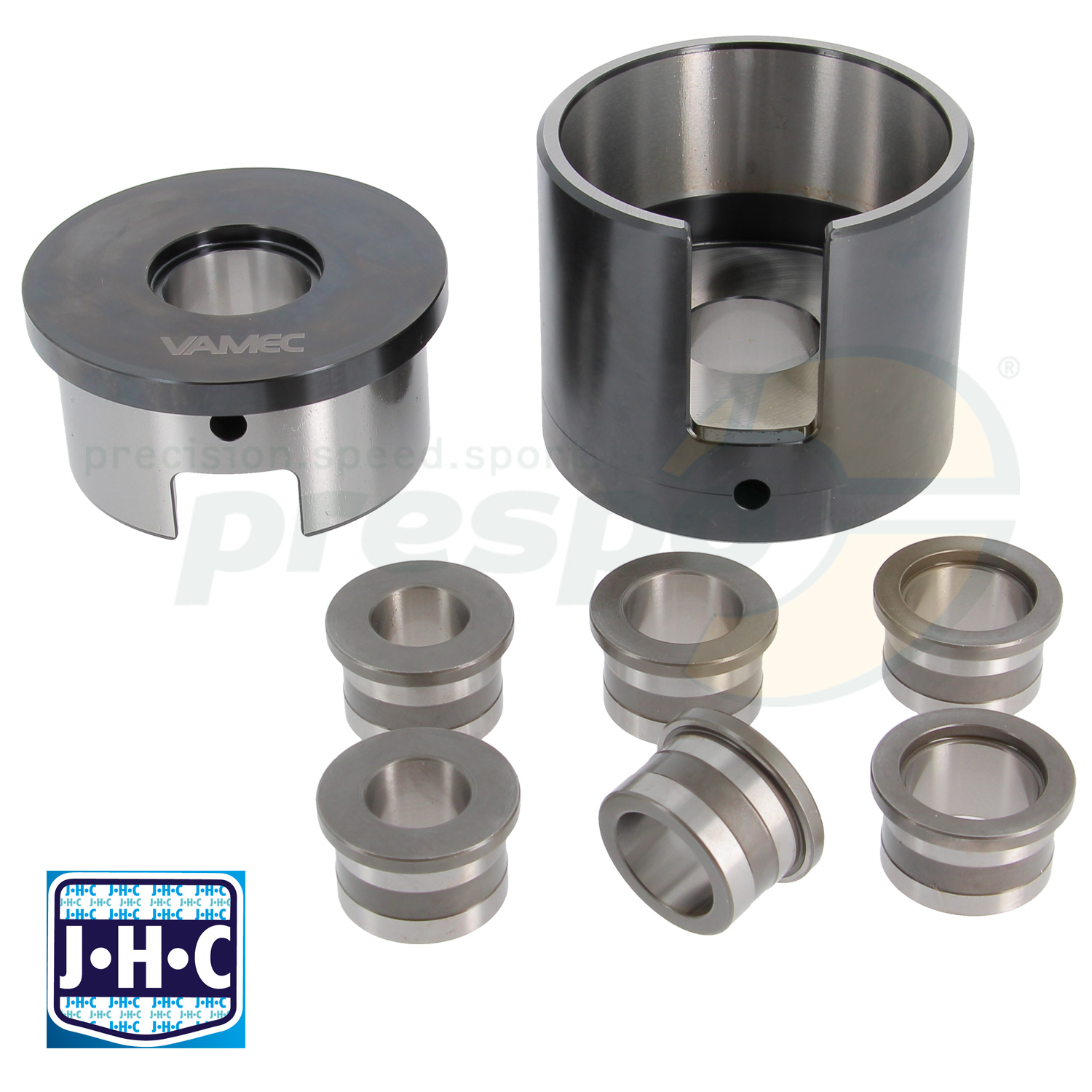

Special device for mounting the crank pin and conrod of a crankshaft.
Suitable for kart engines with a maximum cheek diameter of 93mm.
The device guarantees optimal support and prevents damage to the crankshaft.
As an additional tool you need a hydraulic press and a suitable pressure bolt.

For some engine types (IAME X30) there are additional inserts to prevent damage to the crankshaft cheeks.

The device is supplied including the following bearing seat inserts:
Ø 25mm
Ø 30mm
Ø 31.5mm

material: steel burnished
sdimension: diameter: 120mm Height: 100mm
weight: 6400 gr (without inserts)

article code:	L.21.0307
VPE	Stck.
delivery time:	directly ready to ship circa 1-2 work-days
