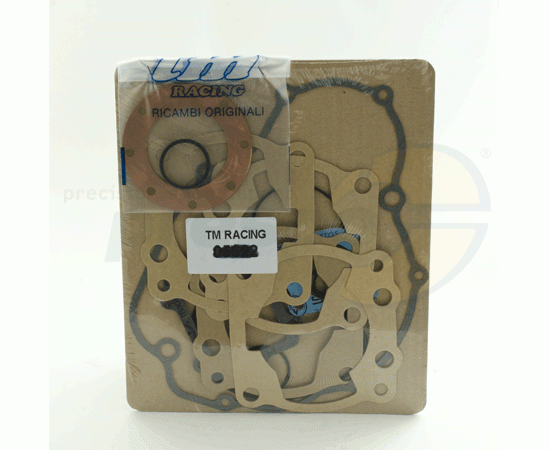

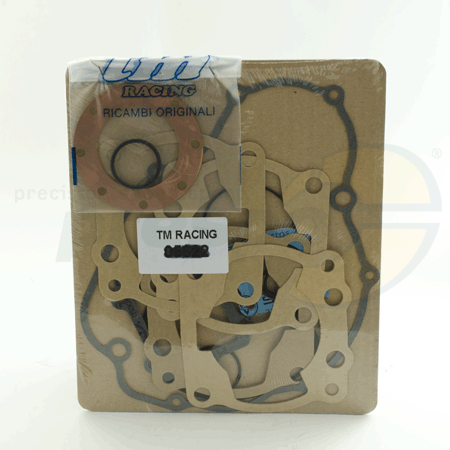

The seal kit consists of the following parts:
1 x K.36.0247 gasket clutch cover
1 x K.36.0321 gasket cylinder 0.05mm
1 x K.36.0322 gasket cylinder 0.1mm
1 x K.36.0327 gasket cylinder 0.15mm
1 x K.36.0323 gasket cylinder 0.2mm
1 x K.36.0324 gasket cylinder 0.3mm
1 x K.36.0325 gasket cylinder 0.4mm
1 x K.36.0326 gasket cylinder 0.5mm
1 x K.36.1152 gasket cylinder head 0,05mm
1 x K.36.1153 gasket cylinder head 0,10mm
1 x K.36.1154 gasket cylinder head 0,20mm
1 x K.36.0104 gasket intake manifold (inside) 2.0mm
1 x K.36.0142 gasket exhaust manifold
1 x K.36.0179 O-Ring sprocket shaft
1 x K.36.0140 O-Ring cylinder head outside
1 x K.36.0015 O-Ring cylinder head inside
1 x K.36.1151 O-Ring combustion chamber
1 x K.36.0115 O-Ring clutch bushing
|
Information on product safety:
manufacturer:
TM Kart srl.
Via Fermo 43
61122 Pesaro (Italien)
info@tmkart.it
