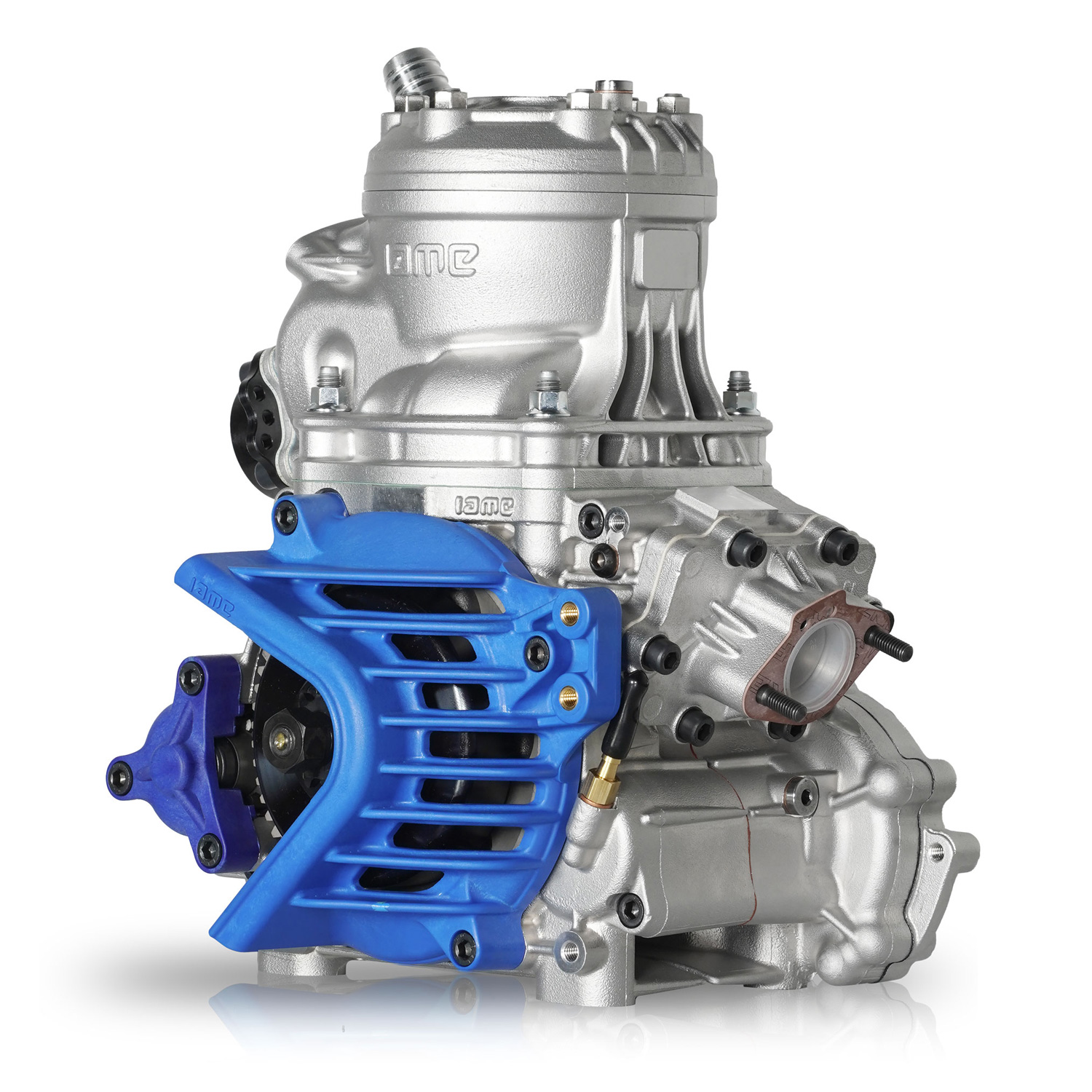

The newly engineered IAME S125, single-cylinder, 125cc two-stroke, water-cooled engine is designed specifically for Karting.
The project is conceived to combine the ease of use of electric started engines with the philosophy and technical solutions shared with high-end racing engines.
The performance level meets nowadays Drivers requirements and the power curve is designed to provide strength yet from the lower revs.
All such is achieved with finest engineering and without the need of an exhaust valve, to preserve ease of use and low maintenance.
The engine is equipped with centrifugal clutch, onboard starter and digital ignition. The S125 is powerful and unproblematic in handling and setting.
Technical details:
- Displacement: 124.08 ccm
- Hub / Bore: 54.00 / 53.89
- max bore: 54.08
- Fuel: Petrol ROZ 95/98 Mixing ratio: 5% (1:20)span>
- ignition: Selettra digital
- carburettor: Tillotson HW 50A
- drive: chain Type 219
Supplied with: - Tillotson HW 50A carburetor with intake silencer
- Wiring harness complete with battery holder
- complete cooling system BIG with water pump and thermostat IAME for 50mm axle
- Spark plug NGK BR 10 EG
- Complete Exhaust System
- Clutch complete with engine sprocket Z 11
For further assembly you will need: - suitable battery
- engine mount for your chassis
- matching exhaust support
|
