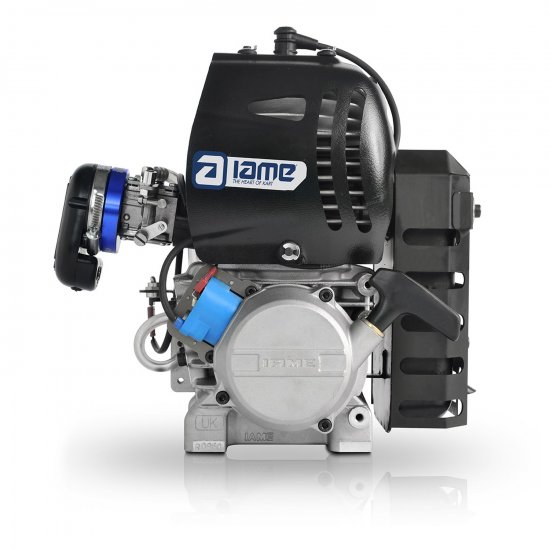

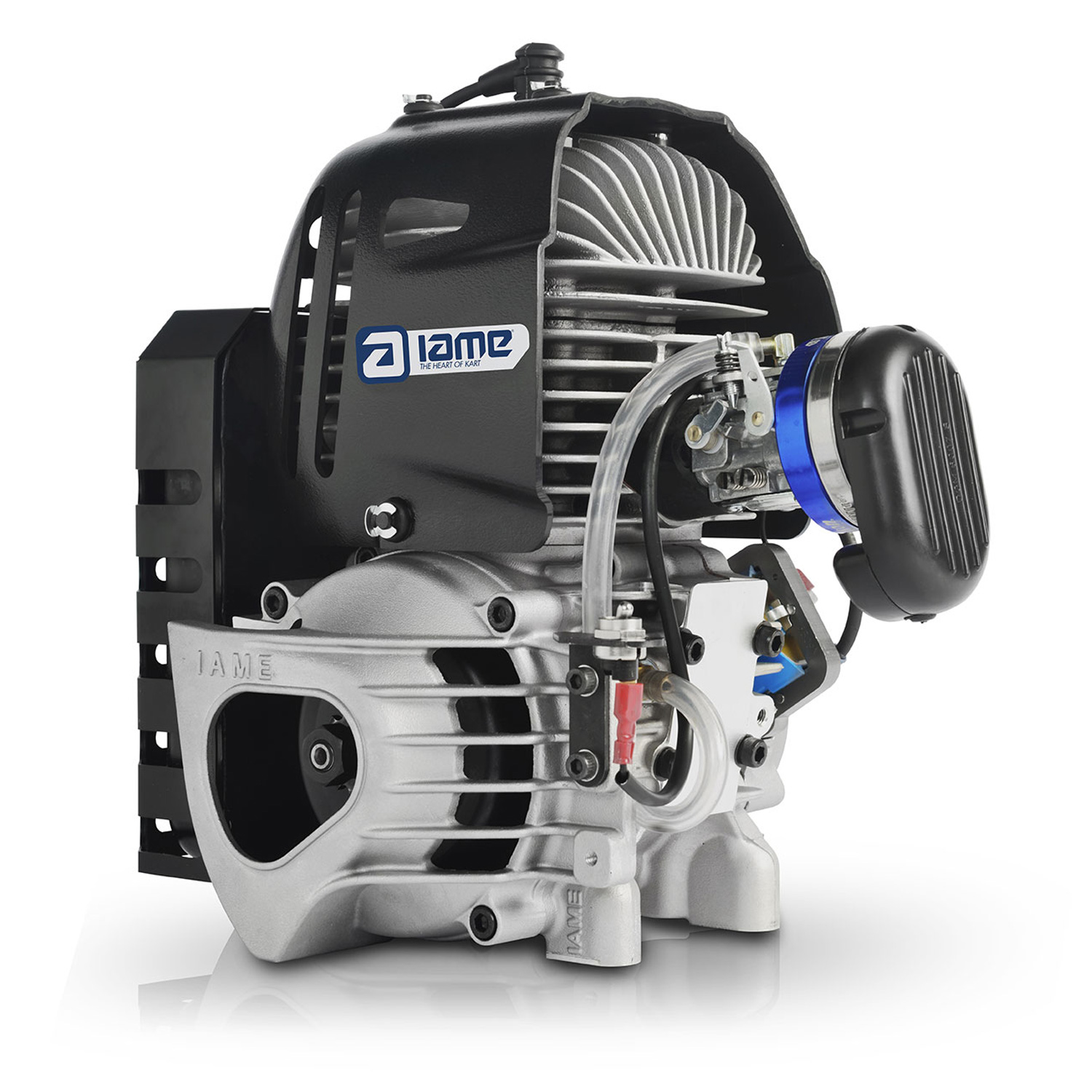

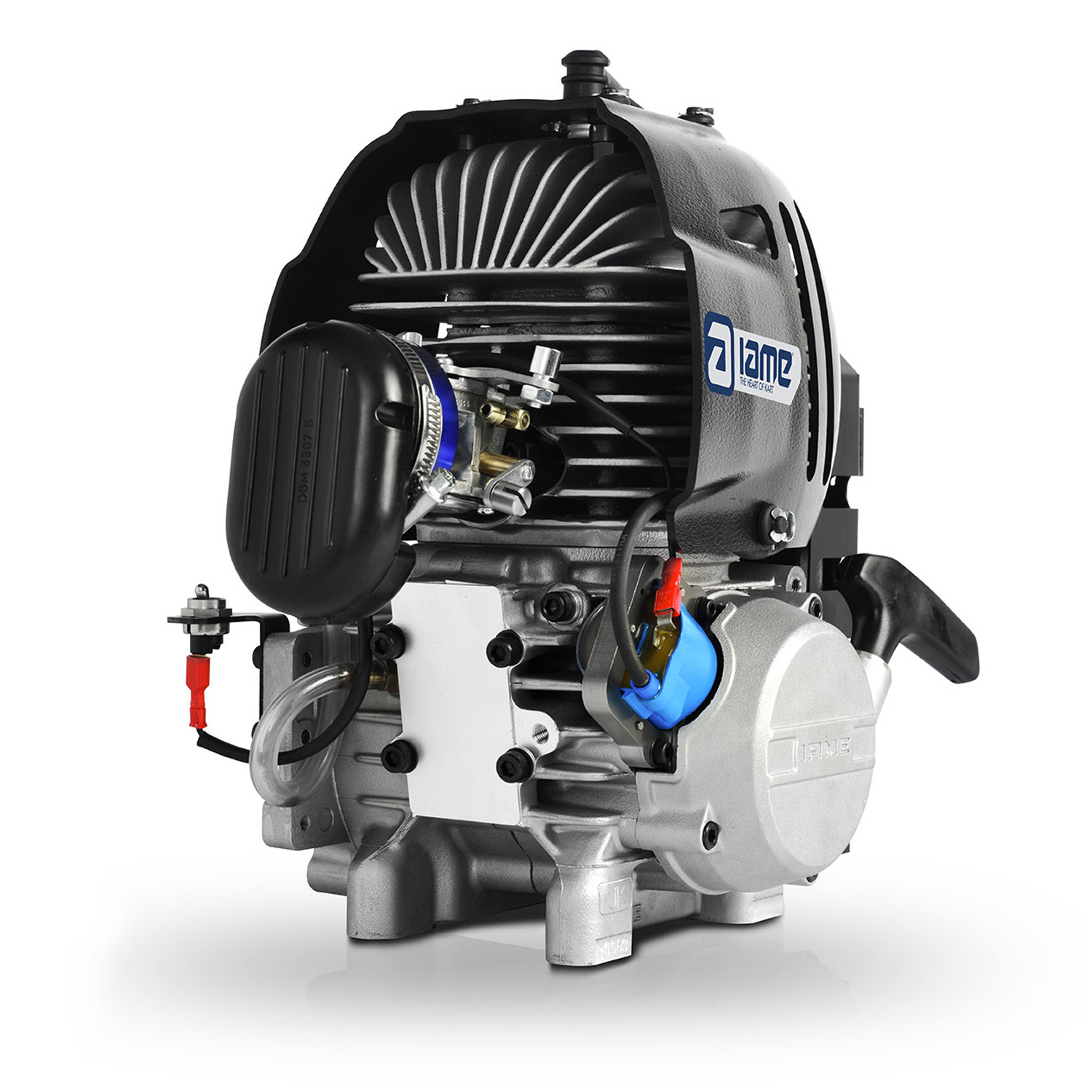

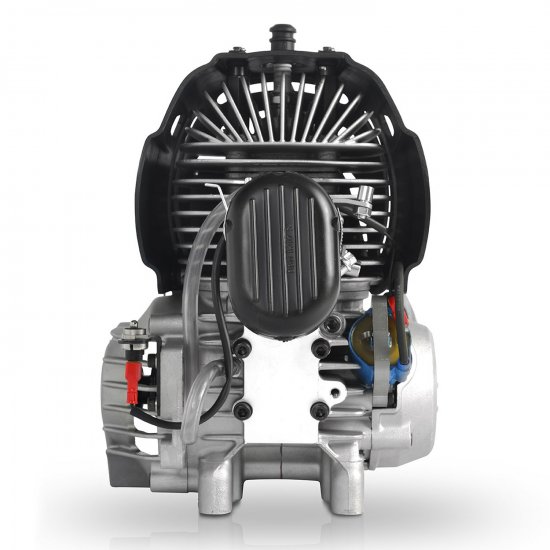

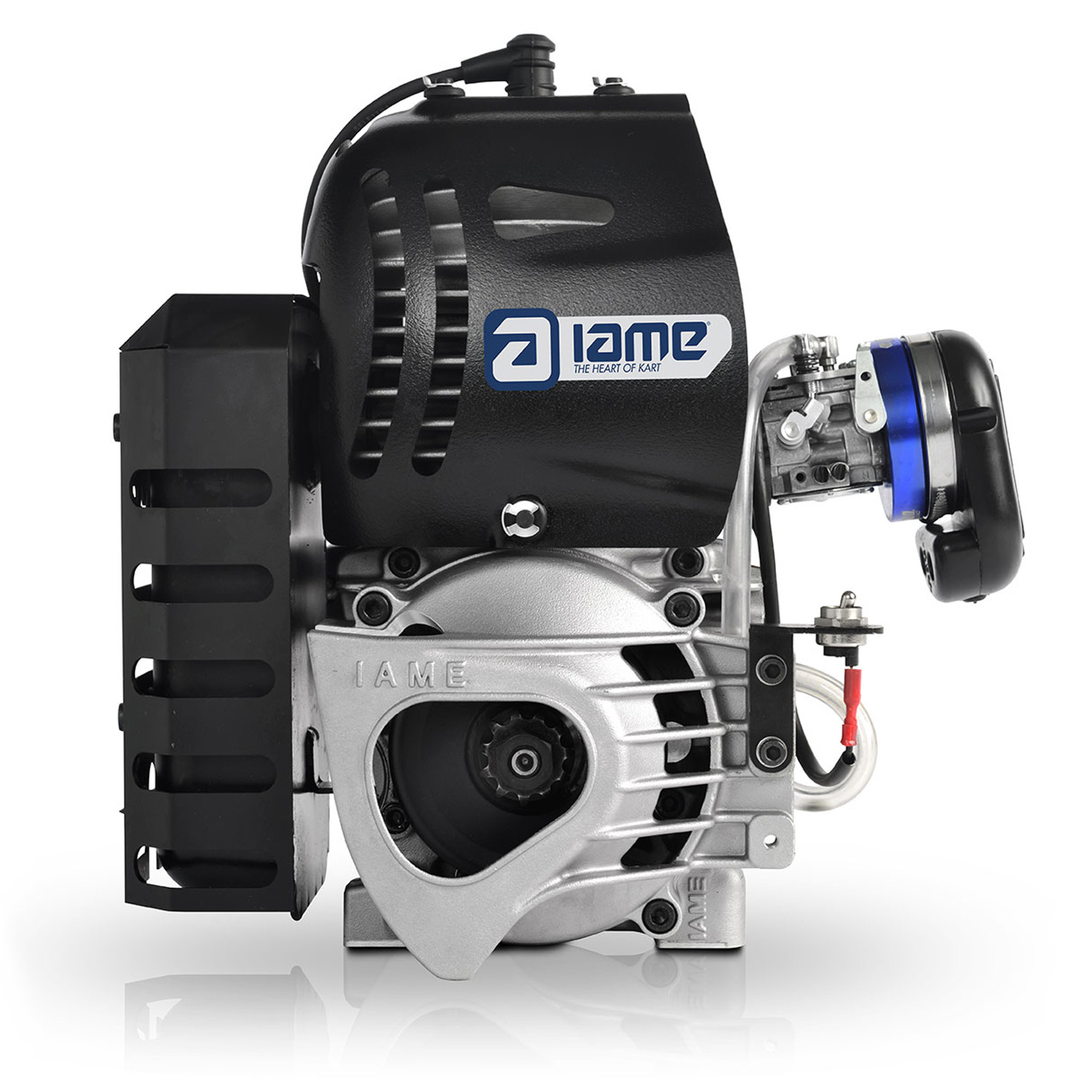

The M1 is a single-cylinder two-stroke engine with a displacement of 60 cm³ and a nominal output of around 2 hp.
This engine was created specifically for entry into karting. compact and user-friendly with centrifugal clutch
The engine is started by a pulley starter
The drive is via a type 219 chain (standard chain in karting).
Technical details:
- Hubraum: 59,42ccm
- Hub/Bohrung: 41.80/43.30
- max Bohrung: 42.00
- Treibstoff: Benzin ROZ 95/98 Mischungsverhältnis: 3% (1:33)span>
- Zündung: analogl
- Vergaser: Tillotson HS-325A
- Antrieb: Kette Typ 219
|
Included in delivery are:
- carburetor Tillotson HS325A mit Luftfilter
- spark plug NGK BR 9 EG
- ignition coil, ignition
- exhaust
- cluthc complete with clutch drum Z 10
- Integrated tank with 1.5l capacity
