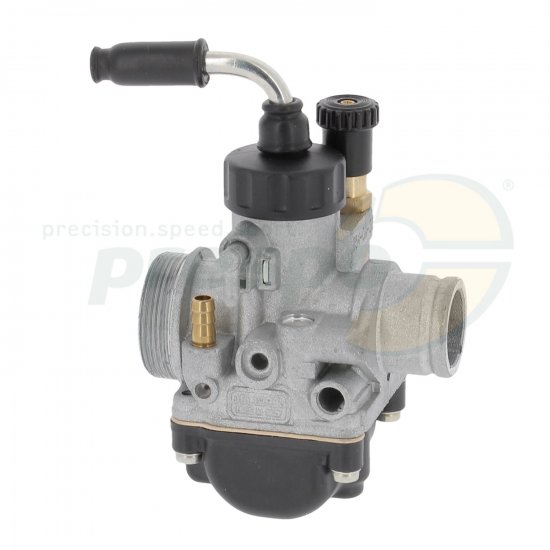

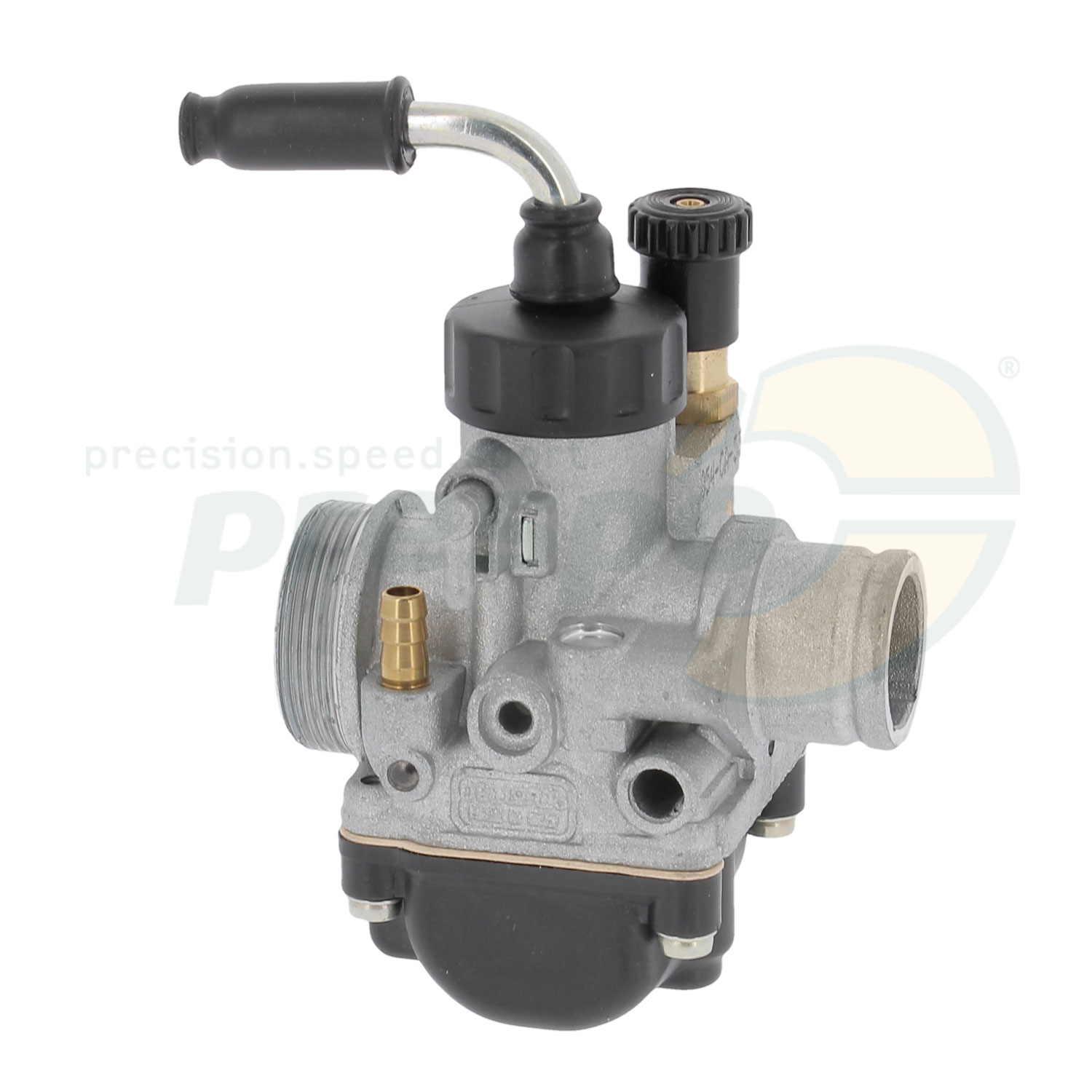

Carburetor DellOrto PHBG18 BS (CIK-Mini) - IAME GR-3

description

CIK/FIA homologated carburettor for the CIK Mini class.
For this class, Dell Orto supplies 2 different models of carburetors with a different inner workings/structure.
The model 2913 described here is equipped with a needle jet of the "AU" series.
A change to other needle jet models is not possible.

the carburetor is equipped with the following components:

gas valve: size 40

neelde model: W23

needle jet: AU 262

main jet: 68

idle jet: 60

Start jet: 60

float: 4gr

article code:	L.11.8004
Shipping weight	305.0 gramm
VPE	Stck.
delivery time:	directly ready to ship circa 1-2 work-days
