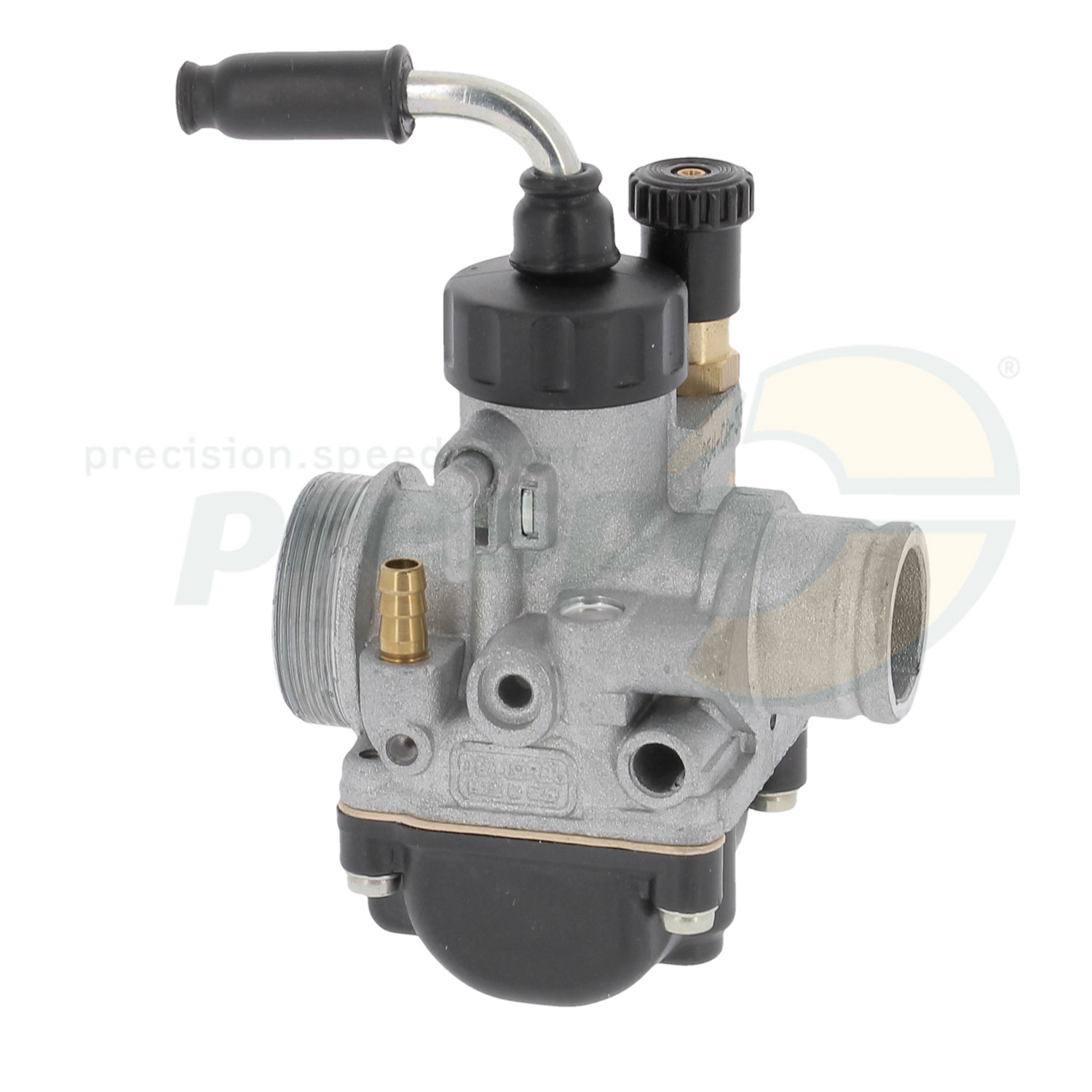

Bild 1 - carburetor Dell Orto PHBG18 BS (CIK-Mini) model: 2523

carburetor Dell Orto PHBG18 BS (CIK-Mini) model: 2523

62,10 EUR
inkl. 19% VAT. | zzgl. Versandkosten
article code: L.11.8006
Shipping weight 305.0 gramm
VPE Stck.
delivery time:
directly ready to ship circa 1-2 work-days directly ready to ship circa 1-2 work-days

CIK/FIA homologated carburettor for the CIK Mini class.
For this class, Dell Orto supplies 2 different models of carburetors with a different inner workings/structure.
The model 2523 described here is equipped with a needle jet of the "AN" series.
A change to other needle jet models is not possible.




the carburetor is equipped with the following components:


  • gas valve: size 40

  • neelde model: W23

  • needle jet: AN 266

  • main jet: 97/span>

  • idle jet: 50

  • Start jet: 60

  • float: 4gr
