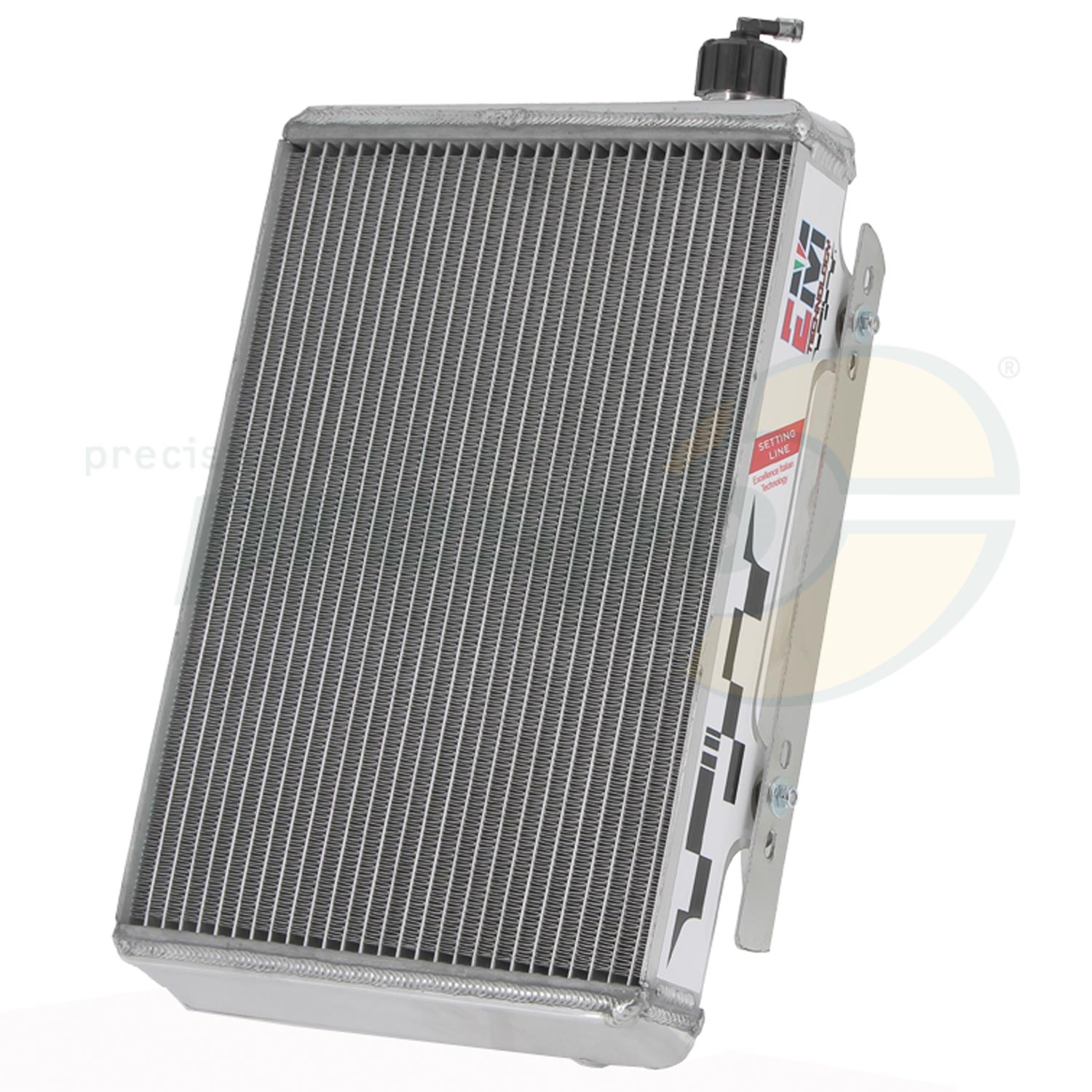

The EM-02 model is the largest radiator in the EM-Technology range. It’s perfect for the KZ categories, in which cooling is crucial during the summer. With the radiator core recessed into the structure, the EM-02 radiator uses the outer edge to convey more air towards the radiator core, improving cooling. The edge created by the structure also prevents the radiator core from being damaged when the curtain is raised or lowered. Another solution introduced to improve cooling are the new top and bottom tanks, featuring an angled shape design to increase the surface exposed to air and also improve the flow characteristics of the water entering and leaving the radiator. Furthermore, the outlet fitting is tilted upwards to allow the silicone hose not to rub against the curbs or the track. The scope of delivery includes an adjustable radiator support (universally suitable) and an overflow tank from NEW-LINE The EM-02 radiator is equipped with a deflector as standard. Technical details: > Radiator weight including bracket: 3,05 kg > radiator size (without filler pipe) 290 x 435mm x 40mm > core area: 278x375mm > core thickness: 40mm > Outside diameter water hoses: 20mm |
