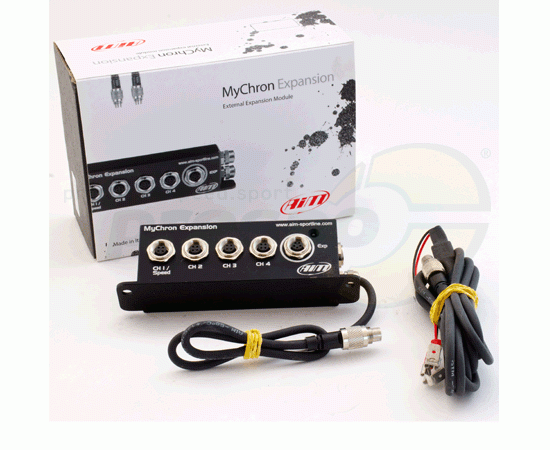

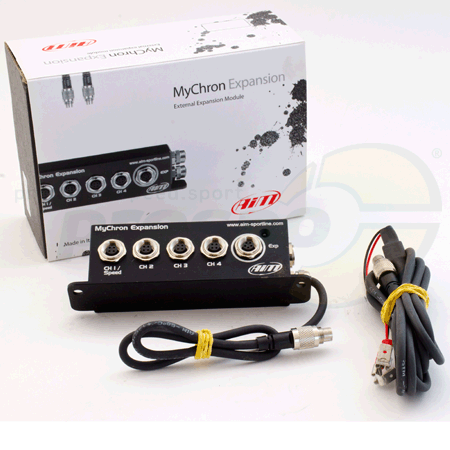

The MyChron Expansion connects up to 4 further sensors with the MyChron 5 and MyChron 5 2T, you can connect the Data Hub and it has got the connection
for the vehicle battery to supply the complete system with power, respectively to monitor the battery voltage via MC5.
There are three analogue inputs for outlet sensor, potentiometer, pressure sensors, temperature sensors PT100 or IR-tire temperature sensor, and one configurable input,
which either can be used for a speed sensor or a normal analogue sensor. Thermocouples (exhaust gas temperature) can’t be connected, for them you still need the connections
on the MyChron 5 respectively Mychron 5 2T.
special features about the Expansion
- Input for speed
- 4 analogue inputs
- Connection for further Expansion
- Sampling rate: 10 Hz
- Connection for 12V
- Dimensions: 127 x 24 x 33 mm
- Protection class: IP65
- Weight: 194 gram
|
